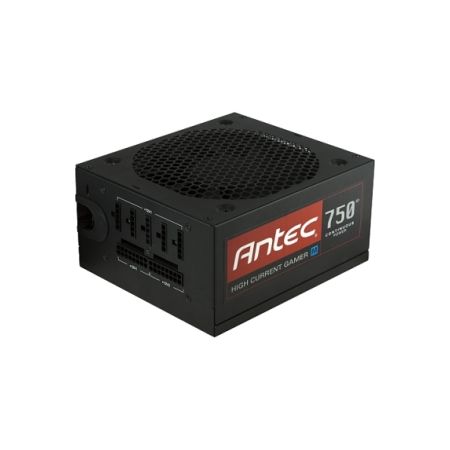

Antec High Current Gamer HCG-750M ATX12V & EPS12V Power Supply Item # 794074
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
794074
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Elite power meets unrivaled performance
Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M's innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm LED double ball bearing fan complete the package. CircuitShield™ makes the HCG-750M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what you're after, the HCG M is the PSU for you.
Product Details
| Item # | 794074 |
| Manufacturer # | RY9077 |
| number of fans | 1 |
| height | 3.4 in. |
| Power Factor Correction (PFC) | Active |
| Output Voltage | 3.3 V DC @ 25 A; 5 V DC @ 25 A; 12 V DC @ 40 A; -12 V DC @ 500 mA; 5 V @ 3 A |
| Product Line | High Current Gamer |
| width | 5.9 in. |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 750 W |
| depth | 6.7 in. |
| Product Name | High Current Gamer HCG-750M ATX12V & EPS12V Power Supply |
| Number of +12V Rails | 2 |
| manufacturer | Antec, Inc |
| Input Voltage Range | 100 V AC to 240 V AC |
| Input Current | 10 A @ 110V; 5 A @ 220V |
| weight | 4.70 lb |
| brand name | Antec |
| protection type | Over Current; Over Voltage; Under Voltage; Short Circuit; Over Temperature; Surge; Inrush Current |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| length | 12.2 in. |
| form factor | Internal |
| Receptacles | 1 x 20+4pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 4 x 6+2pin PCI-E; 9 x Serial ATA; 6 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive |
| color | black |
| Modular | Yes |
| warranty length | 5-year limited |
| model name | HCG-750M |
| Efficiency | 88% |
| Show More ▾ |
